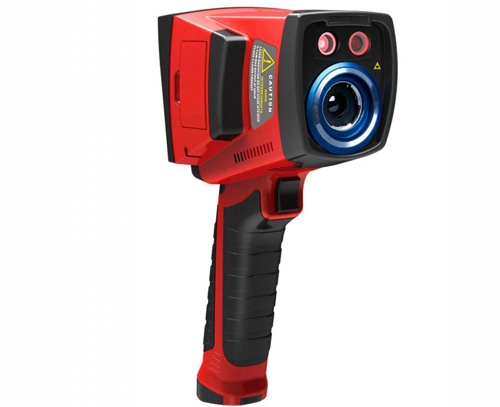

Guide EasIR-4

THERMAL

Detector type

Uncooled Focal Plane Array

Spectral Range

8~14μm

Pixels

160x120, 25μm

Lens/Fov

11mm/20.6° x 15.5°; 7mm/ 31.9° x 24.2°;
30mm/ 7.6° x 5.7°

Focus

Auto Focus

Thermal Sensitivity

80 mk

Electronic Zoom

2X

Image Frequency

50Hz PAL/60Hz NTSC

Palette

8

VISUAL

Visual Camera

CMOS Sensor, 1600 x 1200 Pixels (2M Pixels) 224 True Color

IMAGING PRESENTATION

External Display

3.6 TFT LCD SCREEN

Video Output

PAL/NTSC

IR Blending

Visual and IR Blending

Live Thermal Video Recording

Video Recording In SD Card

Built-in Flash

YES

MEASUREMENT

Temperature Range

  -20° to 250° (350°, 1200° Optional)

Accuracy

± 2 or ± 2% of Reading

Emissivity Correction

Variable From 0.01 to 1.00

Measurement Model

Hot/Cold Point Mark, Center Point and 2 Spot Displaying

IMAGE STORAGE

Media

Removable 4GB Mini SD Card

File Format

JPEG With Analysis Records

Voice Annotation

60S/Image

LASER LOCATOR

Classification Type

Class 2 Semiconductor A1 GaInP Diode Laser

MAN-MACHINE COMMUNICATION

USB 2.0

For Video and Image Transfer

POWER SYSTEM

Battery type

AA NIMH Battery, or AA Rechargeable Battery

Charging System

In Camera or in Battery Charger

Battery Operating Time

Over 2 Hours Continuous Operation

External Power Operation

AC Adapter 110/220V AC, 50/60 HZ

ENVIRONMENT SPECIFICATION

Operation Temperature

  -10° to +50°

Storage Temperature

  -20° to +60°

Humidity

Operating and Storing 10% to 95%, Non-Condensing

Encapsulation

IP54 IEC 529 Housing

Shock

Operational: 25G, IEC68-2-29

Vibration

Operational: 2G, IEC-2-6

PHYSICAL CHARACTERISTICS

Size

111mm x 124mm x 240mm

Weight

0.73Kg
