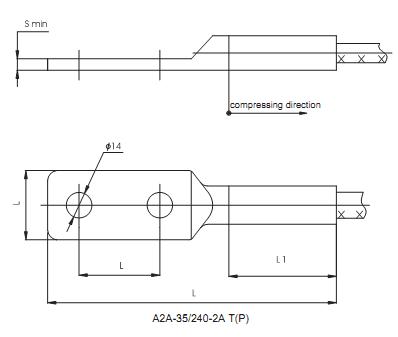

clamps hardware pressing A2A, A4A
CLAMPS HARDWARE PRESSING A2A
NOMINATION:
To join one of aluminum or steel-aluminum wire to hardware outputs when installing outdoor switchgear.
Clamps meet TU 3449-016-52819896-05.
T - thermodynamic method of application of copper on the contact surface
P - contact aluminum plate with a copper layer
Type |
Type of wire by GOST 839-80 |
Intervalof wirediameters, mm |
Matrix ofpressing |
Dimensions, mm |
Weight,, kg |
|||
B |
S |
L |
L1 |
|||||
А2А-10-7 |
AS10/1,8 | 4,5 | ASH-2А-7,8 | 40 | 5 | 180 | 60 | 0,074 |
А2А-16-7 |
А16; AS16/2,7 | 5,1-5,6 | ASH-2А-9,5 | 0,076 | ||||
А2А-25-7 |
А25; AS25/4,2 | 6,4-6,9 | ASH-2А-11,3 | 0,089 | ||||
А2А-35-7 |
А35; AS35/6,2 | 7,5-8,4 | ASH-2А-13,0 | 0,093 | ||||
А2А-50-7 |
А50; AS50/8,0 | 9,0-9,6 | ASH-2А-14,3 | 0,104 | ||||
А2А-70-8 |
А70; AS70/11,0 | 10,7-11,4 | ASH-2А-16,5 | 40 | 10 | 210 | 70 | 0,183 |
А2А-95-8 |
А95; AS95/16,0 | 12,3-13,5 | ASH-2А-18,2 | 0,208 | ||||
А2А-120-8 |
А120; А150; AS70/72; AS120/19; AS120/27 | 14,0-15,8 | ASH-2А-20,8 | 220 | 80 | 0,227 | ||
А2А-150-8 |
А185; AS150/19; AS150/24; AS150/34 | 16,8-17,5 | ASH-2А-23,4 | 230 | 0,265 | |||
А2А-185-8 |
А240; AS95/141; AS185/24; AS185/29; AS185/43; AS205/27 | 18,8-20,0 | ASH-2А-26,0 | 245 | 90 | 0,293 | ||
А2А-240-8 |
А300; AS240/32; AS240/39; AS240/56 | 21,6-22,4 | ASH-2А-30,3 | 60 | 255 | 100 | 0,416 | |

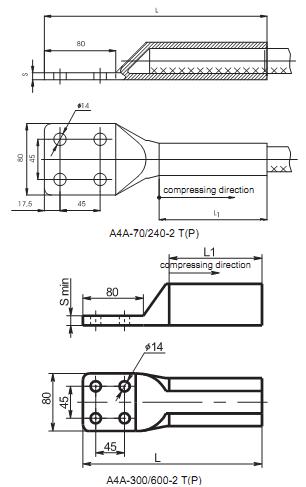

CLAMPS HARDWARE PRESSING A4A
NOMINATION:
To join one of aluminum or steel-aluminum wire to hardware outputs when installing outdoor switchgear.
Clamps meet TU 3449-016-52819896-05
Type |
Type of wires by, GOST 839-80 |
Interval of wire diameter , mm |
Matrix of pressing |
Dimensions, mm |
Weight, kg |
||
L |
L1 |
S |
|||||
А4А-70-8 |
А70; AS70/11 | 10,7-11,4 | ASH-2А-16,5 | 210 | 70 | 10 | 0,306 |
А4А-95-8 |
А95; AS95/16 | 12,3-13,5 | ASH-2А-18,2 | 0,331 | |||
А4А-120-8 |
А120; А150; AS70/72; AS120/19; AS120/27 | 14,0-15,8 | ASH-2А-20,8 | 220 | 80 | 0,350 | |
А4А-150-8 |
А185; AS150/19; AS150/24; AS150/34 | 16,8-17,5 | ASH-23,4 | 230 | 0,388 | ||
А4А-185-8 |
А240; AS95/141; AS185/24; AS185/29; AS185/43; AS205/27 | 18,8-20,0 | ASH-26,0 | 245 | 90 | 0,416 | |
А4А-240-8 |
А300; AS240/32; AS240/39; AS240/56 | 21,6-22,4 | ASH-30,3 | 255 | 100 | 0,514 | |
А4А-300-2 |
AS300/39; AS300/48; AS300/66; AS300/67; AS330/30; AS330/43; AS400/18; AS400/22; А350; А400 | 24,0-26,6 | А-40,5 | 220 | 13 | 0,640 | |
А4А-400-2 |
AS400/51; AS400/64; AS400/93; AS450/56; AS300/204; AS500/26; AS500/27; AS500/64; А450; А500; А550 | 27,3-30,6 | А-45,0 | 240 | 120 | 0,830 | |
А4А-600-2 |
AS550/71; AS600/72; А600; А650 | 31,5-33,2 | А-51,0 | 260 | 140 | 15 | 1,100 |
А4А-700-2 |
AS700/86; AS750/93 | 36,2-37,7 | А-57,0 | 280 | 21 | 1,655 | |
