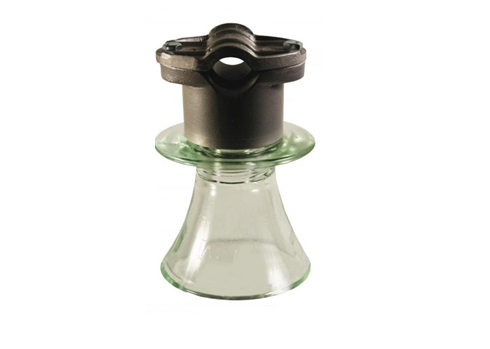

SHTIZ-10A, SHTIZ-10B

Type of
insulator acc.
Russian
standard

Ultimate
Mechanical
Strength of
insulators,
KN, not less

Diameter
of glass
shed (D),
mm

Spacing,
mm

Creepage
distance,
mm

Weight, kg

Voltage withstand, kV, not less

Impulse

Frequency
50 Hz, wet

Radio
interference level

SHTIZ-10A

20

130

180

300

4,0

80

40

40

SHTIZ-10B

13

130

180

300

4,0

80

40

40
